[WP12544124 Valve OEM Mania] WP12544124 (IMV-124, K-77198) NEW Robertshaw Produced for Whirlpool Refrigerator Water Valve Replacement Part 12544124 AP6005465 PS11738514 1541085

Brand: OEM MANIA WE CARE YOUR DIFFICULTY.

Color: Black

Features:

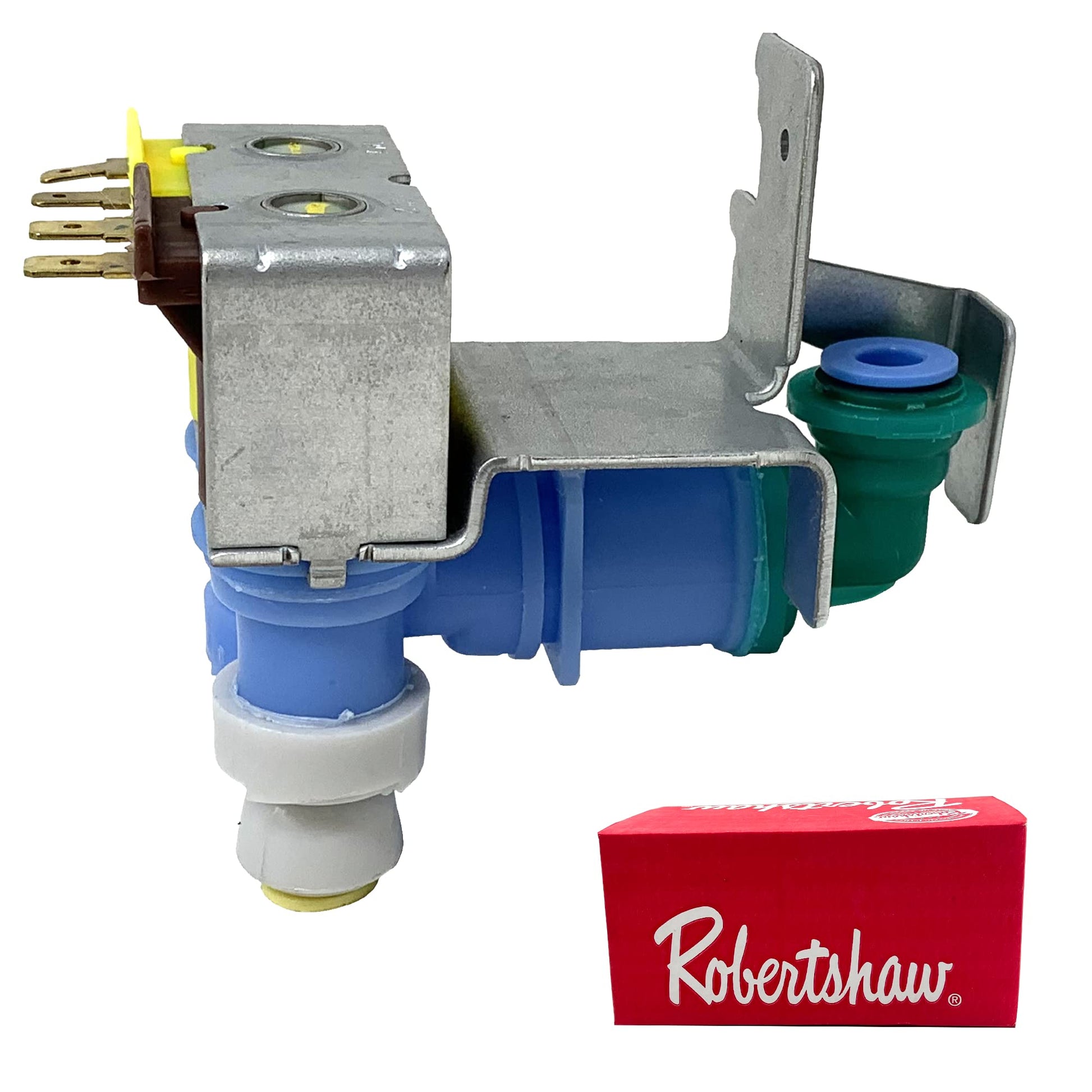

• This valve is manufactured by Robertshaw, which is an OEM manufacturer for Whirlpool. We offer 1 year warranty.
• Replacement for numbers WP12544124, AP6005465, PS11738514 and 12544124.

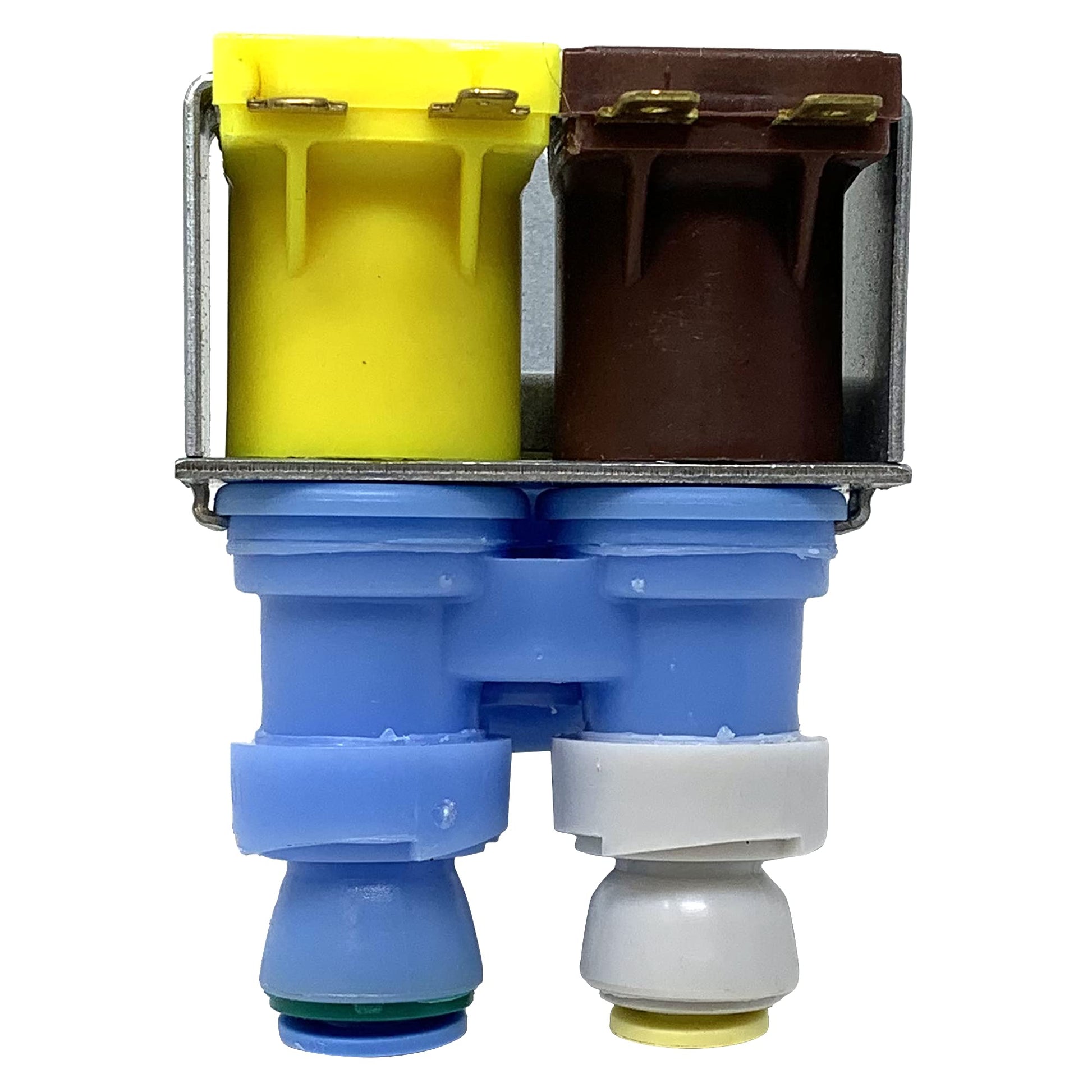

• Yellow Coil is rated 20 Watts and has 3/16 inch Terminals. Brown Coil is Rated 35 Watts and has 1/4 inch Terminals. Both Coils are Rated 120 Volts.
• Electrical Rating: 120V AC, 60 Hz, 20W/35W, 5/16 inch Inlet. 1/4 and 5/16 inch outlet. All connections are quick disconnect. Operating Pressure: 20 PSI to 120 PSI,
• Inlet Size: 5/16" quick connect, Outlet: 1/4" quick connect, 5/16" quick conenct, Terminals: 1/4" Male, 3/16" Male, Flow Rate: 115-154 CC in 7.5 seconds, 40-80 CC per second

model number: WP12544124

Part Number: WP12544124

EAN: 8809876800231

Package Dimensions: 8.2 x 1.9 x 0.6 inches
