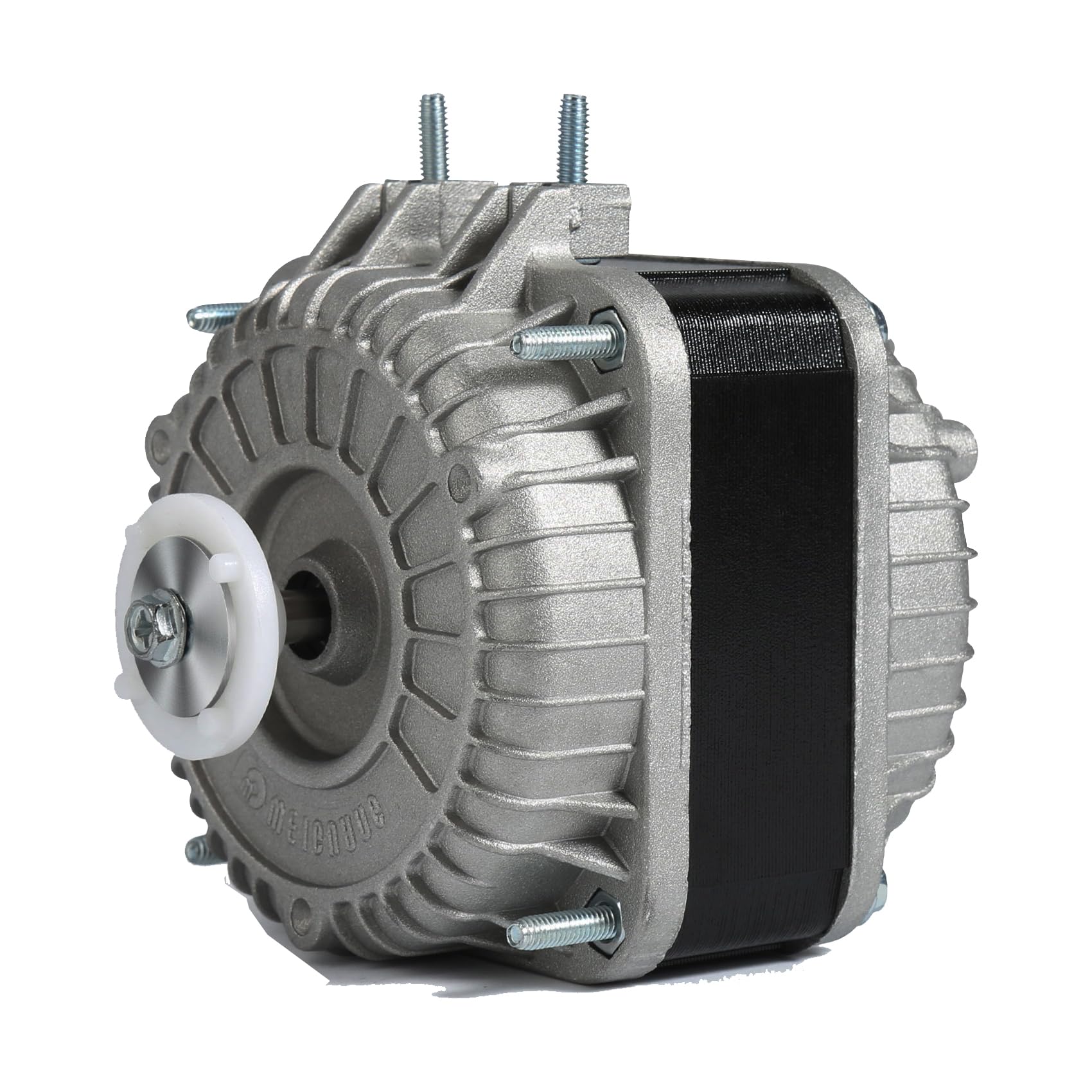

Condenser Fan AC Motor YZF18-25,18W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved,Can Replace YZF10-20 YZF6-13

Brand: WEFUMOT

Features:

• Specifications:120V 60Hz shaded pole AC motor YZF18-25,Input power 70W, Output power 18W, Current 1.01A, Rotational speed 1550r/min,UL certification,Widely used in condenser fan motor in refrigeration equipment
• Working Environment:YZF18-25 AC motor is Class B insulation, and has built-in overheat protector, the protection temperature is 257 °F, the motor can work continuously in -13 °F to 122 °F ambient temperature
• Load Capacity:YZF18-25 fan motor the maximum fan blades size that can be used is Φ254,28°，rated air volume 940m3/h，using sleeve bearing and can work continuously for more than 20,000 hours

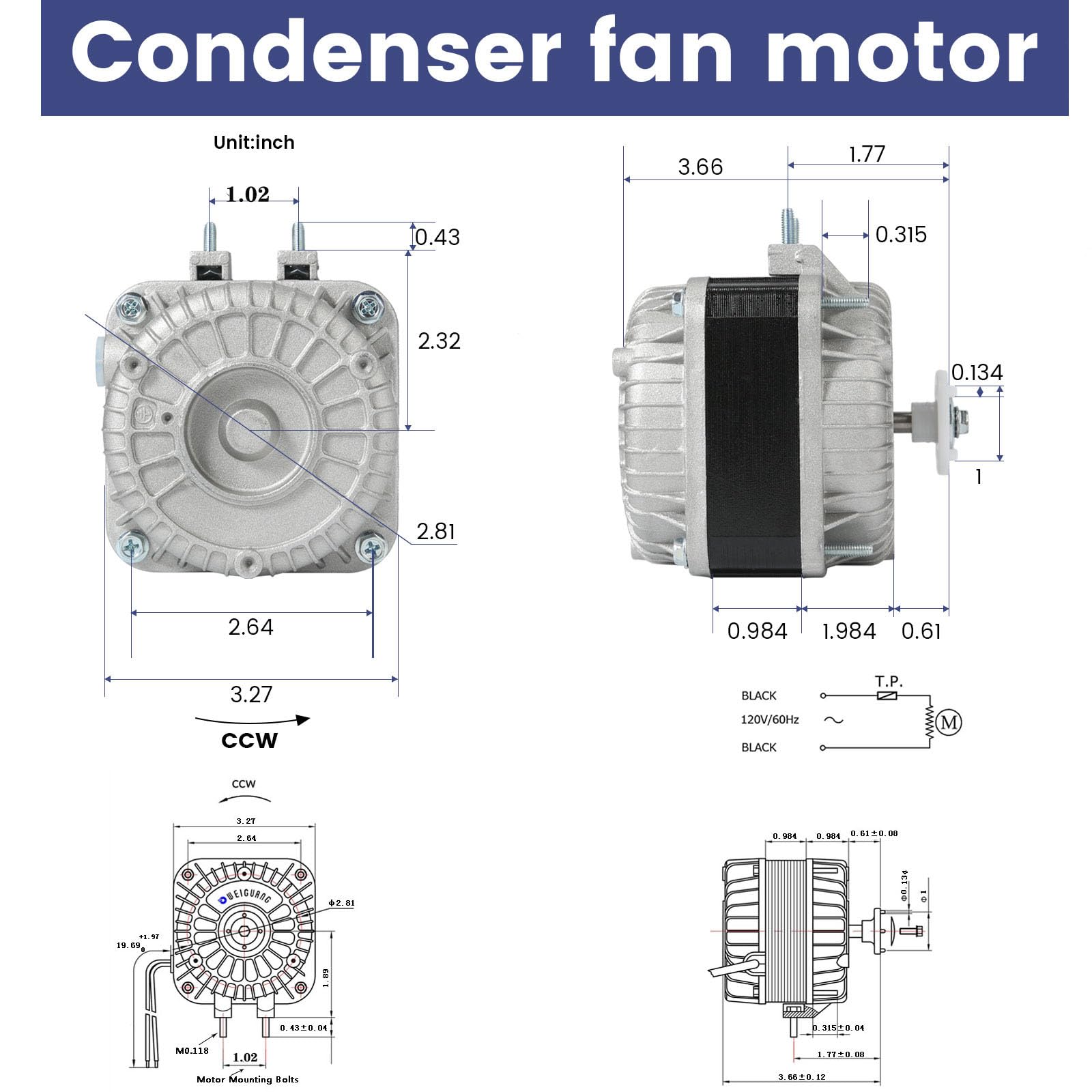

• Installation Mode：YZF18-25 motor mounting pin spacing is 0.709 inches，it needs to be mounted horizontally or vertically with mounting brackets，the motor rotates counterclockwise
• Connecting wire: Motor has two leads, specification 18AWG, UL certification, line length 19.68-21.65 inches, used to connect the two poles of the power supply, motor housing grounding wire

model number: ZF18-25

Part Number: YZF18-25

EAN: 0799174205884

Package Dimensions: 4.6 x 4.4 x 4.2 inches
