1.25” Heim Joints Rod End Kit,1 1/4” Chromoly Heim Joints Panhard Rod End Kit for Steering,Suspension, Traction Bars, Right&Left Hand Thread with Spacer,Tube Adapters & Jam Nuts - 1Set

Brand: NOVINO

Features:

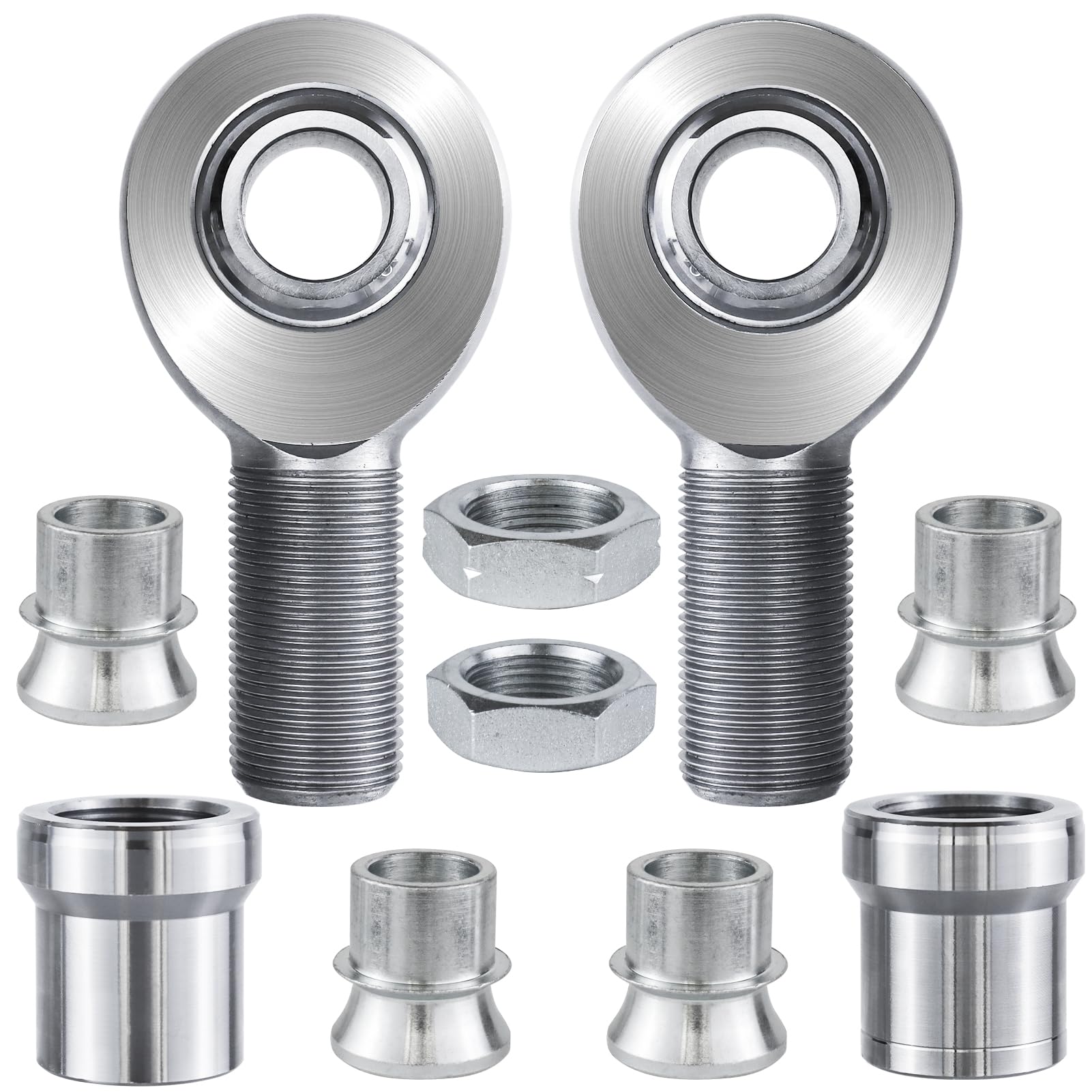

• 1.25” rod end heim joint kit:1.25" left & right hand thread heim joint set with tube adapters,misalignment spacer , jam nuts
• Premium quality:The 1 1/4” heim joints rod end kit are heat treated and hard chrome plated to provide a longer use and heavy duty performance(load capacity- 76,000 lbs)
• Easy to install: Our heim joints for 1 1/4” rod end can be MiG and TIG welded with additional hardware for mating installation
• Widely use:The 1 1/4” rod end heim joint great for steering and suspension ,traction bars, steering joints and links joints on hot rods
• The rod end is with 1 1/4” shaft with 1.2tpi. 1.25” bore is the strongest way to make this heim.Fits Tube Size: 1 3/4" OD.x .120" Wall x 1.5"ID.

model number: HJ-013

Part Number: HJ-013

Details: 1.25" Adjustable Rod End Heim Joint Kit

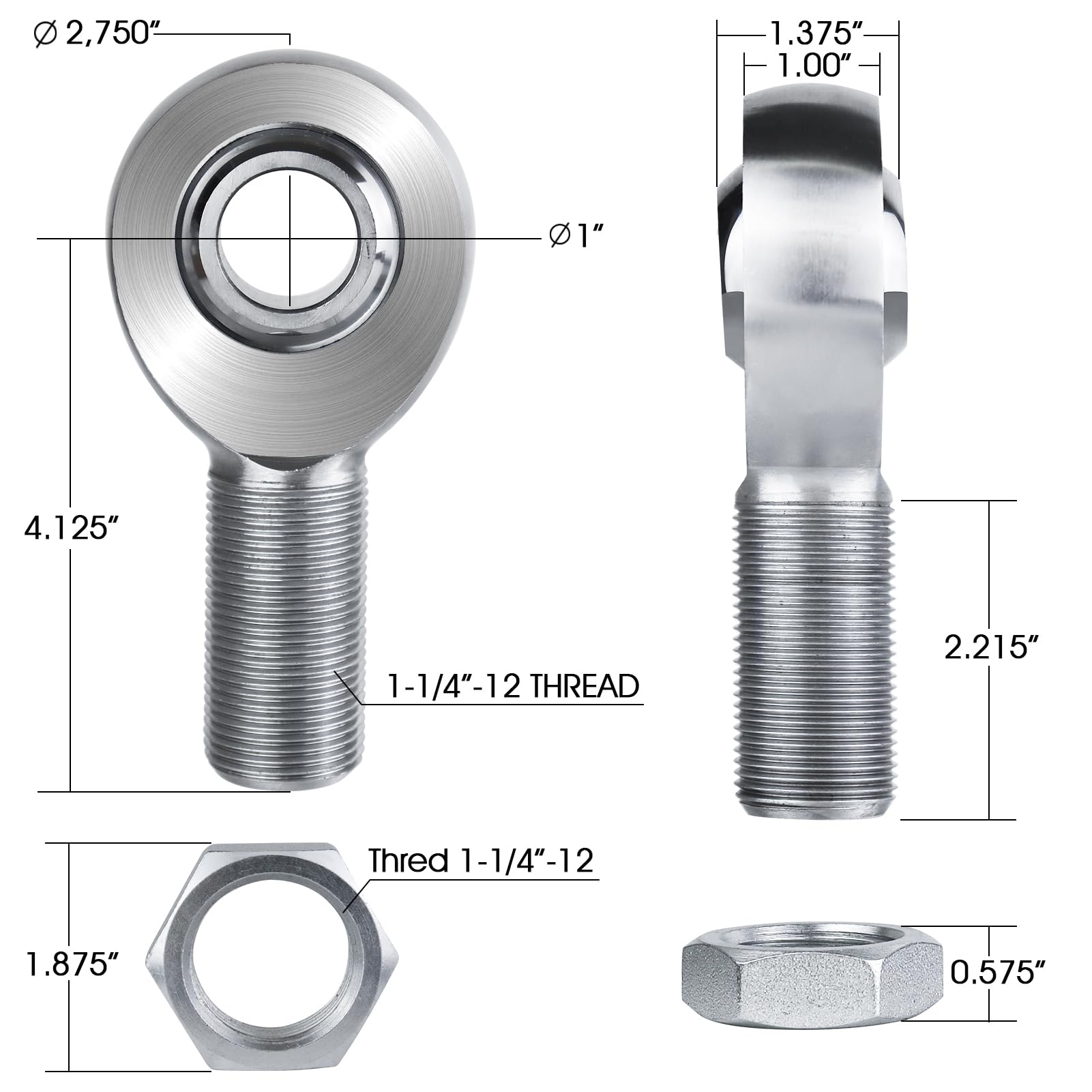

Rod End:
Thread Size:1-1/4"-12
Ball Bore: 1"
Ball Width: 1.375"
Centerline Length: 4.125"
Thread Length: 2.125"
Load Capacity: 76,200 lbs

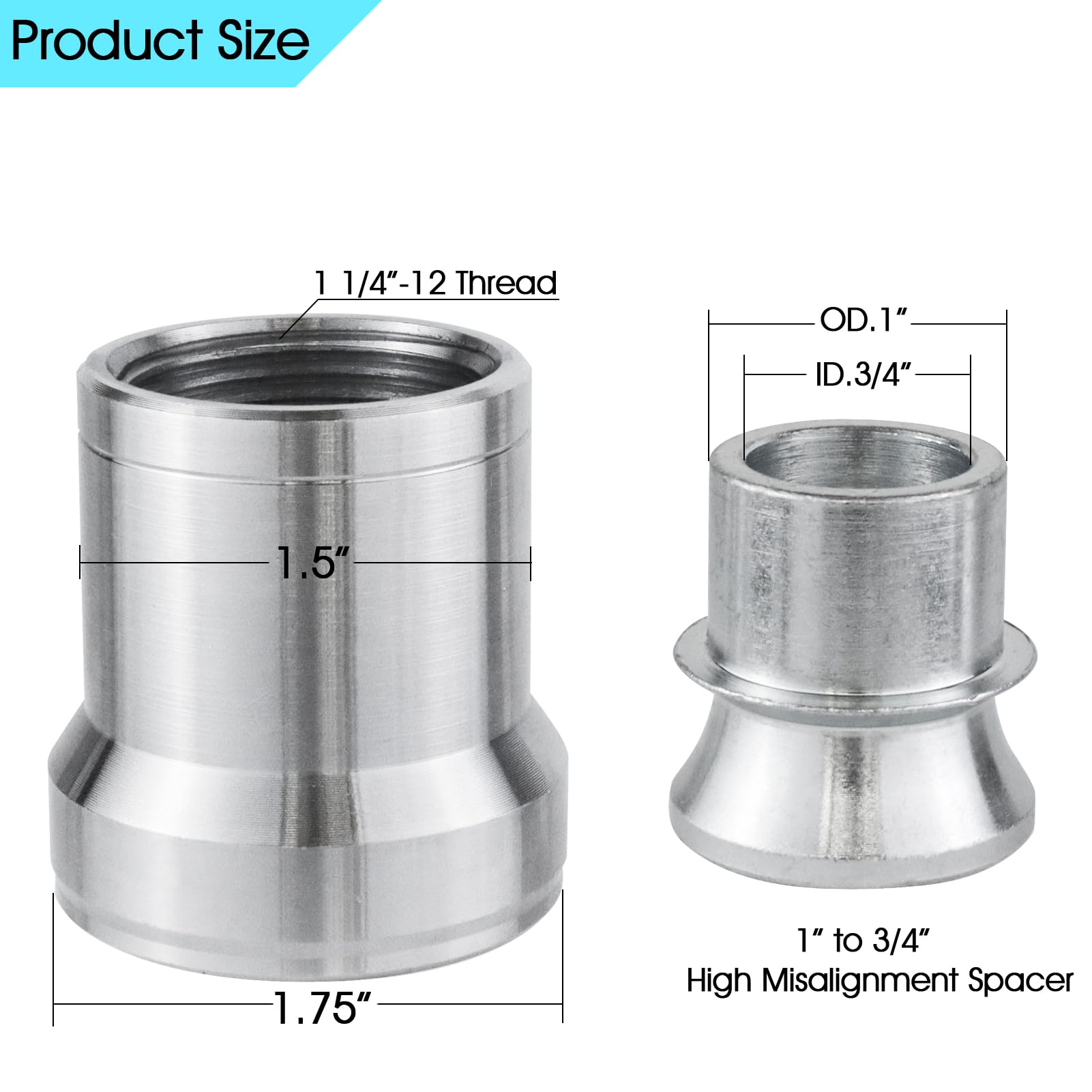

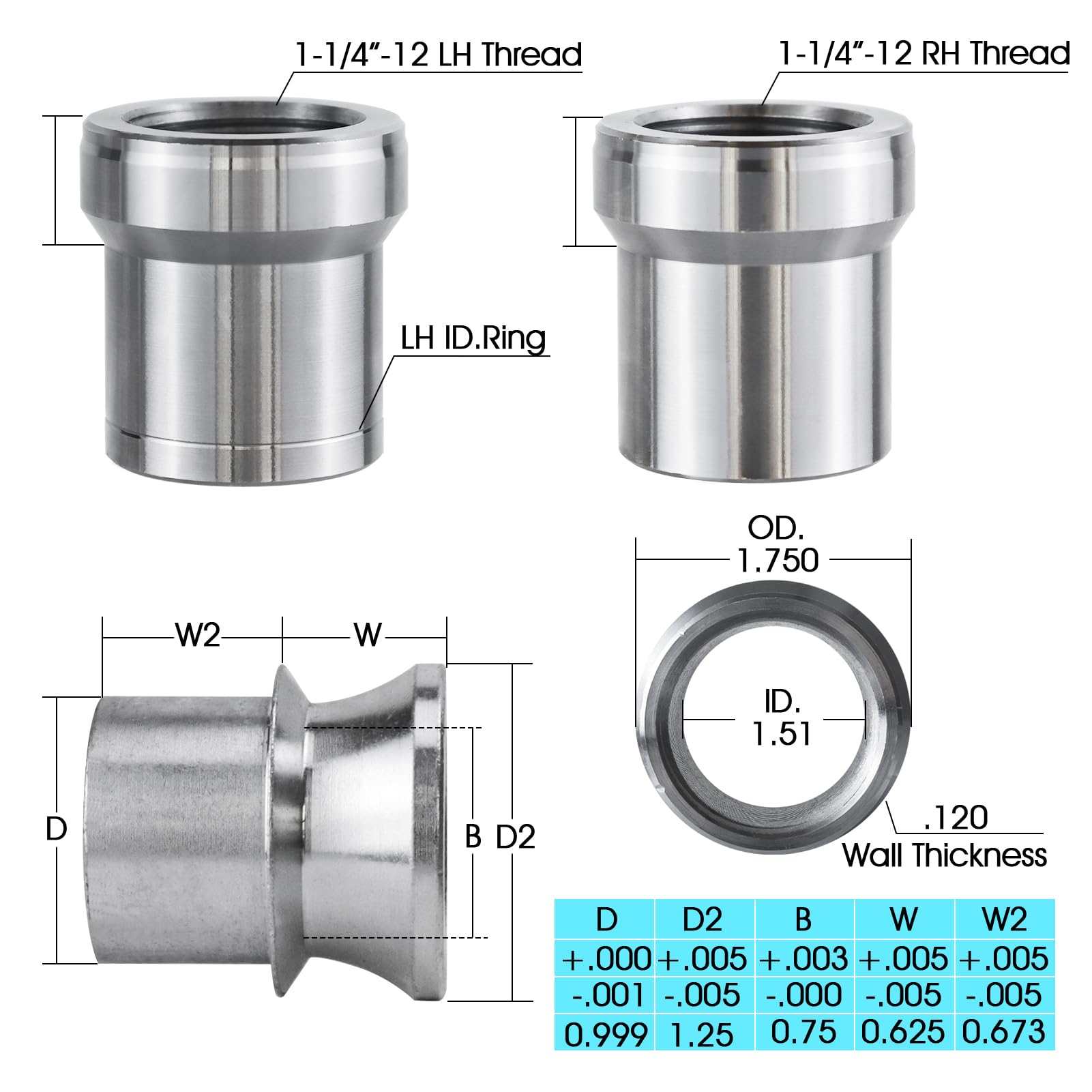

1-1/4 Bung:
Thread Size: 1-1/4"-12
Fits Tube Size: 1 3/4" OD. x .120 Wall x 1.5" ID.

High Misalignment Spacer:1"- 3/4"
Insert Dia: .999"
Inside Bore: .750"
Outside Boss Dia: 1.250"
Overall Length In Ball: 2.625"
Approximate Degrees: 60

Jam Nut:
Thread:1-1/4"-12
Width: 1.875"
Height: 0.575"
Chromoly Steel, Silver Zinc Plated

Package Dimensions: 6.9 x 5.2 x 3.2 inches
